Every vehicle owner understands the ongoing burden of fuel expenses. As commuting costs fluctuate globally, drivers actively seek alternative methods to lower their spending at the pump. This search for optimized performance has fostered a massive marketplace for aftermarket automotive accessories, fuel additives, mechanical modifications, and electronic plug-ins.
Among these options, the Neosocket Fuel Saver—frequently marketed alongside or interchangeably with the Fuel Shark Economizer—has sustained a visible online presence for over a decade. Advertised as a simple plug-and-play solution that inserts directly into a vehicle’s 12V auxiliary power outlet (commonly known as the cigarette lighter socket), the device claims to improve fuel economy by 10% to 30%, boost engine acceleration, lower harmful exhaust emissions, extend battery lifespan, and enhance the performance of onboard electronics like the stereo and climate control systems.
However, the intersection of automotive engineering, electrical physics, and consumer reality paints a vastly different picture. To help drivers make an informed choice, this comprehensive analysis investigates the structural mechanics, electrical architecture, laboratory reality, and consumer feedback surrounding this device.
What is the Neosocket Fuel Saver? Analysing the Core Product Claims

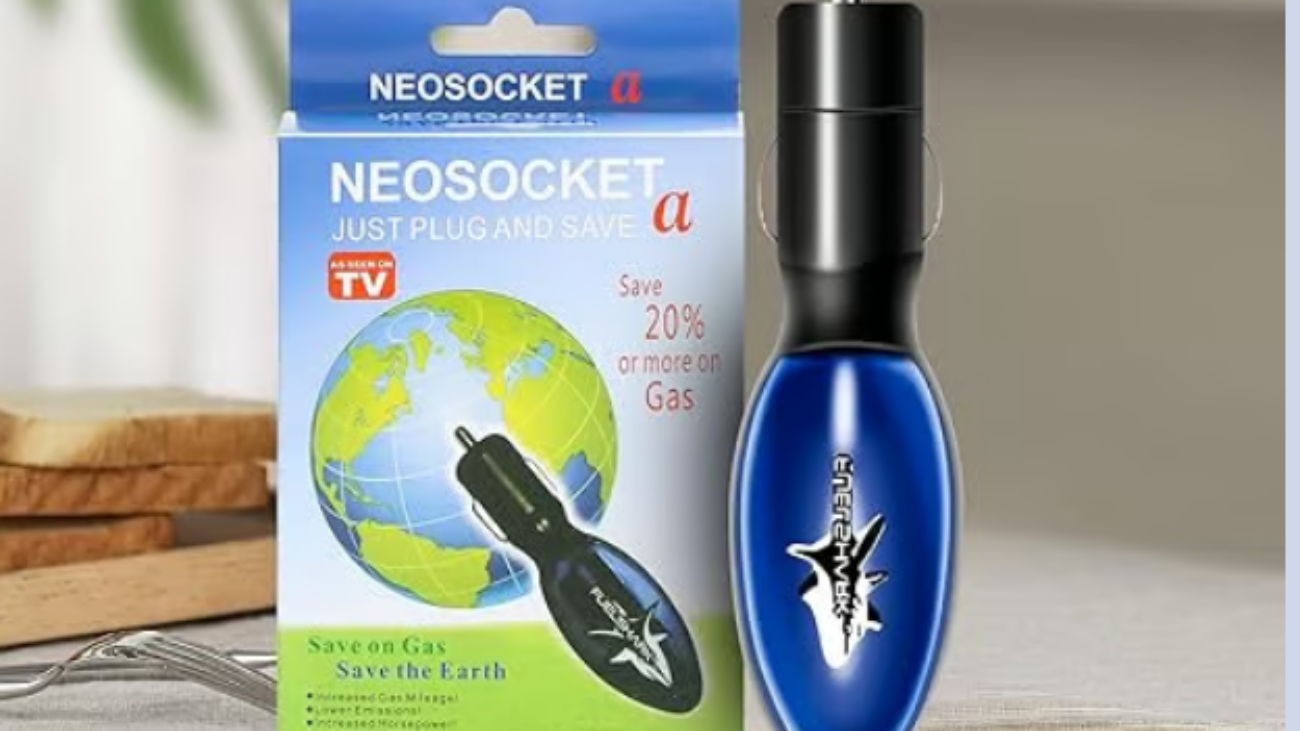

The product is presented to consumers as a compact, lightweight electronic accessory crafted from plastic housing and fitted with a standard 12V adapter plug. Unlike complex mechanical tuning kits or invasive fuel-line modifications that require professional mechanic installation, it promises instantaneous optimization without the need to lift the car’s hood.
According to marketing documentation found across various retail storefronts and informational landing pages, the device functions as an electronic stabilizer. The foundational claims made by the manufacturer include:
Voltage Stabilization: The device purports to actively monitor, balance, and stabilize the vehicle’s internal electrical grid, mitigating power surges and drops caused by alternating loads from heavy accessories like air conditioners, high-draw audio setups, and headlights.
Reduced Alternator Drag: By compensating for voltage fluctuations, the device supposedly minimizes the physical resistance or “load” the alternator places on the internal combustion engine, allowing the powerplant to run more freely and burn less gas or diesel.
Enhanced Engine Combustion: Proponents assert that a more consistent, ripple-free electrical voltage directly translates to hotter, more precise spark plug ignition sequences, leading to cleaner combustion, improved throttle response, and a minor bump in horsepower.
Ecological Sustainability: Promotional literature claims that by fostering highly optimized fuel combustion, the unit significantly lowers dangerous carbon monoxide (CO) and carcinogenic emissions, directly contributing to a lower carbon footprint.
The core message relies heavily on the premise that modern vehicles operate with inefficient, fluctuating electrical frameworks that inherently waste fuel—a gap that an external, localized capacitor system can allegedly fix.
Theoretical Framework: The Science Behind Vehicle Electrical Distribution
To thoroughly evaluate the technical viability of the device, it is crucial to understand how a standard internal combustion engine vehicle handles, generates, and regulates electrical energy.
+-------------------------------------------------------------+
| Modern Vehicle Electrical System |
+-------------------------------------------------------------+
| |
| +---------------+ Mechanical Belt +----------+ |
| | Engine Crank | ------------------------> |Alternator| |
| +---------------+ +----------+ |
| | |
| v |
| +---------------+ DC Voltage (13.8V-14.4V) | |
| | Lead-Acid / | <------------------------------+ |
| | AGM Battery | | |
| +---------------+ v |
| | +--------------------+ |
| | Pure DC Power | Solid-State Voltage| |
| +------------------------> | Regulator (In ECU) | |
| +--------------------+ |
| | |
| v |
| +--------------------+ |
| | Spark Plugs / ECU /| |
| | Fuel Injection | |
| +--------------------+ |
| |
+-------------------------------------------------------------+
The Role of the Alternator and Battery
When a vehicle’s engine is running, the main source of electrical energy is not the battery, but the alternator. Driven by a serpentine belt linked directly to the engine’s crankshaft, the alternator converts rotational kinetic energy into alternating current (AC), which is immediately passed through an internal diode rectifier bridge to transform it into direct current (DC).
This raw DC energy performs two tasks simultaneously: it recharges the automotive battery (typically a heavy-duty lead-acid or Absorbent Glass Mat [AGM] battery) and powers the active electrical loads of the car—including the Engine Control Unit (ECU), digital fuel injection actuators, high-voltage ignition coils, infotainment displays, and climate control fans.
High-Capacity Energy Filters
Automotive batteries are massive chemical reservoirs that possess incredibly low internal resistance. Because of this low resistance, the battery acts as a giant natural capacitor or buffer. It absorbs massive spikes and drops in voltage instantly.
Furthermore, high-output components like modern stereos or headlights do not draw raw, unfiltered voltage straight from an unmanaged line. They are supported by sophisticated solid-state regulators and filters engineered directly into the vehicle’s fuse blocks, power distribution modules, and internal control computers.
The Standard Charging Cycle
A standard healthy vehicle operates on a nominal electrical grid running between 13.8 and 14.4 volts while the engine is active. If a driver activates a heavy accessory, such as rolling up power windows or turning on the rear window defroster, the system experiences a temporary voltage dip.
Within milliseconds, the electronic voltage regulator built into or managed by the vehicle’s main computer senses this drop and alters the magnetic field strength inside the alternator rotor. This action causes the alternator to generate more current to match the demand, maintaining an optimal electrical balance automatically.
Disassembling the Unit: What Components Exist Inside the Casing?
To separate marketing rhetoric from physical reality, automotive electronics researchers and independent engineering channels have performed numerous teardowns of the device. Opening the ultrasonic-welded plastic housing reveals a remarkably simple, sparse interior layout.
+-----------------------------------------------+
| Internal Circuit Board |
+-----------------------------------------------+
| |
| [+] -----[Fuse]------------------+ |
| | |
| v |
| +----------------+ |
| | Electrolytic | |
| | Capacitor | |
| | (220uF-470uF)| |
| +----------------+ |
| | |
| v |
| +----------------+ |
| | Resistor Bank | |
| | (Current Limit)| |
| +----------------+ |
| | |
| v |
| +----------------+ |
| | Light Emitting | |
| | Diode (LED) | |
| +----------------+ |
| | |
| [-] -----------------------------+ |
| |
+-----------------------------------------------+
The typical component inventory of an authentic or cloned unit consists of the following elements:
A Miniature Glass or Ceramic Fuse: Installed as a basic safety measure to protect the vehicle’s auxiliary port from dead short circuits if an internal component fails.
A Small Radial Electrolytic Capacitor: Typically rated between 220 microfarads ($\mu\text{F}$) and 470 microfarads ($\mu\text{F}$), operating at 25 or 35 volts. This component is the primary asset highlighted in product descriptions as the “strong electrical storage cell.”
A Current-Limiting Resistor Network: A sequence of standard fixed resistors designed to restrict the raw amperage traveling through the circuit board.
A Single Light Emitting Diode (LED): Usually a blue or red diode positioned under a clear or translucent plastic dome at the back of the plug casing, intended to illuminate when plugged into a powered 12V port.
Technical Analysis of the Component Layout
From a strict circuit-design perspective, this collection of electronics forms a rudimentary LED indicator loop. The positive 12V feed from the center pin of the cigarette lighter passes through the fuse, feeds into the positive leg of the parallel-wired electrolytic capacitor, travels through the current-limiting resistor to reduce the voltage down to a safe operating level for the diode, lights up the LED, and exits through the negative outer ground spring clips.
There are no integrated circuits (ICs), microprocessors, smart sensors, operational amplifiers, or radio-frequency communication chips present. The board is entirely passive, incapable of tracking engine RPMs, monitoring real-time fuel-injection pulse widths, or interacting with the vehicle’s digital Controller Area Network (CAN bus) communication framework.
The Engineering Perspective: Evaluating the Capacity of the Device
To understand why the device’s design raises questions among automotive engineers, one must analyze the mathematical relationship between the device’s internal storage capacity and the vast electrical demands of an operating vehicle.
The Scale of the Small Capacitor
The device contains a small capacitor, generally around 350 microfarads ($\mu\text{F}$). The mathematical formula used to determine the total electrical charge ($Q$) stored within a capacitor is:
Where:
$Q$ is the charge in Coulombs
$C$ is the capacitance in Farads ($1\,\mu\text{F} = 1 \times 10^{-6}\text{ Farads}$)
$V$ is the electrical potential in Volts
If we calculate the total charge stored by a high-grade $470\,\mu\text{F}$ capacitor operating on a stable $14.4\text{V}$ automotive charging profile, we find:
To put this value into a practical context, consider the definition of an Ampere: one Ampere of electrical current represents the movement of exactly one Coulomb of charge per second.
If a vehicle’s climate control fan draws a modest 10 Amperes of current, it requires 10 Coulombs of charge every single second. If the alternator experienced a sudden drop and relied solely on this small capacitor to fill the deficit, the stored energy ($0.006768\text{ Coulombs}$) would be completely exhausted in less than a millisecond:
Comparison with a Standard Car Battery
Now, let us compare this calculation to the primary electrical stabilization reservoir already present in every vehicle: the standard 12V lead-acid car battery. A typical mid-sized passenger vehicle battery features a capacity rating of roughly 60 Ampere-hours (Ah). This rating means the battery can deliver 1 Ampere of current continuously for 60 hours, or 60 Amperes for one full hour.
To convert this capacity into Coulombs for a direct mathematical comparison:
Comparing the two systems reveals the immense scale difference:
The factory-installed car battery holds over thirty-one million times the electrical energy buffer capacity of the tiny capacitor inside the plug-in device.
Because of this massive scale difference, any minor electrical ripple that escapes the battery and the alternator’s built-in regulator will easily overwhelm the small capacitor, rendering its stabilizing effect mathematically negligible.
Demystifying the Mechanism: Does Voltage Regulation Save Fuel?
The core marketing narrative asserts that stabilizing a vehicle’s electrical voltage unburdens the alternator, which in turn reduces engine drag and saves fuel. Let us examine whether this sequence holds up under the laws of thermodynamics.
+-----------------------------------------------------------------+
| The Mechanical-Electrical Loop |
+-----------------------------------------------------------------+
| |
| [Engine Crankshaft] ---> Direct Mechanical Link (Belt) |
| | |
| v |
| [Alternator Rotor] |
| | |
| v |
| [Magnetic Field Output] |
| | |
| +--------------------+--------------------+ |
| | | |
| v v |
| [Active Electrical Loads] [LED Indicator Plug]
| - ECU & Fuel Injectors - Draws ~0.02A
| - Headlights & Audio - Consumes minor power
| - Climate Control Fans - Thermodynamic Net Loss
| |
+-----------------------------------------------------------------+
The Laws of Thermodynamics and Energy Conservation
The First Law of Thermodynamics states that energy cannot be created or destroyed; it can only be transformed from one form to another. In an automobile, every watt of electrical energy consumed by a component—whether it is a headlight, a stereo speaker, or a dashboard light—must be extracted from the mechanical energy of the spinning engine. The engine, in turn, generates that mechanical energy by burning fossil fuel.
The alternator does not spin freely without resistance. When electrical demand rises, the magnetic field inside the alternator strengthens, making the rotor physically harder for the engine belt to turn. This physical resistance is known as electromagnetic drag.
How Much Power Does the Device Use?
When you plug the device into a 12V auxiliary outlet, the small capacitor charges instantly, which draws a tiny, brief burst of current. After that initial fraction of a second, the capacitor sits in a static state, holding its charge.
However, the built-in LED remains illuminated continuously. A standard diagnostic LED coupled with a current-limiting resistor pulls roughly 15 to 20 milliamperes ($\text{mA}$) of current to maintain its glow:
While a quarter of a watt is incredibly small, it represents a continuous, active draw on the vehicle’s electrical framework. The alternator must generate this extra fraction of a watt by converting rotational energy, meaning the engine must burn a microscopic extra amount of fuel to keep the LED lit.
Instead of creating a surplus of energy or reducing alternator load, the device functions as a minor electrical load, resulting in a tiny thermodynamic net loss.
The Problem of Isolated Auxiliary Wiring
The physical path the electricity must travel presents another engineering obstacle. A car’s cigarette lighter socket or 12V auxiliary port is located at the far end of a long, thin, fused accessory wiring run. This run branches off the primary distribution block, which sits far away from high-demand engine components like the high-voltage ignition coils or fuel injection sub-assemblies.
Any minor electrical adjustments happening inside an auxiliary cabin plug must travel backward through cabin fuses, dashboard wiring bundles, and primary engine bay relays before reaching the ignition components. Due to the inherent electrical resistance of long, thin copper wiring, any tiny voltage adjustments are entirely lost before they can reach the engine components.
The Phenomenon of Variable Outcomes: Analyzing Consumer Reviews
Despite the mathematical and engineering criticisms, a collection of real-world product reviews across online marketplaces, automotive forums, and community message boards show drivers claiming they observed noticeable fuel savings after installing the plug.
To understand why consumer reviews vary so widely, we must look into human psychology and the nuances of real-world fuel economy tracking.
The Psychology of Conscious Driving
The most powerful tool for changing a car’s fuel economy is not under the hood; it is the driver’s foot. When a consumer purchases a fuel-saving device, they are deeply aware of their fuel consumption and eager to see a return on their investment.
Once the device is plugged into the dashboard and its bright LED illuminates, it serves as a continuous visual reminder to drive more efficiently. Subconsciously or consciously, the driver often alters their behavior behind the wheel:
Accelerating more smoothly away from stoplights.
Coasting toward red lights rather than braking late.
Maintaining a steady pace on highways instead of frequent overtaking maneuvers.
Slowing down slightly (e.g., driving at 65 MPH instead of 75 MPH).
+---------------------------------------------------------------+
| The Visual Behavioral Feedback Loop |
+---------------------------------------------------------------+
| |
| [Purchase Fuel Saving Plug-in Device] |
| | |
| v |
| [Insert into 12V Dash Board Port] |
| | |
| v |
| [Bright LED Remains Constantly Active] |
| | |
| v |
| [Continuous Visual Cue to Driver] |
| | |
| v |
| [Subconscious Adjustment of Driving Style] |
| - Gentle Throttle Application |
| - Reduced Top Highway Speeds |
| - Anticipatory Braking and Coasting |
| | |
| v |
| [Measurable 10%-15% MPG Improvement] |
| | |
| v |
| [Attributed to Device Rather Than Behavior] |
| | |
+---------------------------------------------------------------+
Aerodynamic drag scales exponentially with speed. Reducing highway speeds by just 5 to 10 miles per hour can improve fuel economy by 10% to 15%. When a driver notices this improvement on their trip computer, they naturally credit the new device on their dashboard rather than their adjusted driving habits.
Variable Environmental Testing Variables
Real-world driving involves a massive number of changing variables that make accurate tracking difficult unless conducted under strict laboratory controls. Fluctuations in fuel efficiency are frequently driven by factors completely unrelated to the device:
Ambient Temperature and Weather: Cold air is denser than warm air, increasing aerodynamic drag. Engines also take longer to reach optimal operating temperatures in cold weather, burning more fuel.
Wind Speed and Direction: A steady 15 MPH headwind significantly lowers fuel economy, while a tailwind boosts it.
Tire Inflation Pressures: Tires naturally lose pressure over time. If a driver checks their vehicle over, inflates their tires properly, and installs the device at the same time, the improved fuel efficiency stems entirely from reduced tire rolling resistance.
Traffic Flow Changes: Shifting from a stop-and-go city commute to a smoother, less congested route will drastically improve miles per gallon (MPG) on its own.
Without controlled lab equipment—like a chassis dynamometer operating in a temperature-managed testing cell—everyday drivers often misattribute these environmental shifts to the device.
Direct Diagnostic Comparison: Fuel Line Magnets vs. Voltage Plugs
While the electronic 12V plug-in version is the most common product bearing this name, some online stores sell a completely different mechanical variant under the exact same brand. This variant consists of a clamp-on plastic bar lined with internal permanent magnets designed to snap around the rubber fuel delivery lines in the engine bay.
This variation often confuses online automotive forums, as discussions conflate two completely different mechanisms. To clarify the marketplace, here is a breakdown of how these two distinct approaches compare:
| Operational Metric | 12V Auxiliary Voltage Variant | Clip-On Fuel Line Magnetic Variant |
| Physical Location | Vehicle Cabin (Cigarette Lighter Port) | Engine Bay (Fuel Delivery Tube) |
| Claimed Science | Smoothing alternator voltage ripples | Magnetically polarizing hydrocarbon chains |
| Internal Hardware | Small Capacitor, Resistor, LED | Ceramic or Neodymium Permanent Magnets |
| Installation Requirement | Zero tools; simple plug-in action | Snaps over line; secured with zip-ties |
| Stated Efficiency Gain | 10% to 30% reduction in fuel consumption | 10% to 25% reduction in fuel consumption |
| Actual Circuit Status | Draws minor power to light the LED | Passive; does not touch electrical systems |
| Engineering Assessment | Capacity is too small to alter vehicle grid | Hydrocarbons are non-polar; unaffected by magnets |
The Physics of Fuel Line Magnet Claims
The marketing behind the magnetic variant claims that passing fuel through a strong magnetic field reorganizes clustered hydrocarbon molecules into a aligned linear structure. This alignment is supposed to allow oxygen molecules to mix more thoroughly with the fuel, resulting in a cleaner, more powerful burn.
However, independent validation agencies, including the United States Environmental Protection Agency (EPA) under the Motor Vehicle Fuel Savings Devices Evaluation Program (Section 511 of the Clean Air Act), have thoroughly tested various clamp-on magnetic fuel savers.
The physics clear-cut: liquid gasoline and diesel fuel are diamagnetic, meaning they are not attracted to magnetic fields and their molecular bonds cannot be rearranged by permanent magnets. Just like the electronic plug-in variant, independent lab testing confirms that magnetic line clamps produce no measurable changes in engine efficiency or exhaust emissions.
Real-World Diagnostic Testing: What the Lab Results Reveal
To see through the marketing noise, we must turn to rigorous, reproducible laboratory testing. Organizations like the EPA, the American Automobile Association (AAA), and dedicated engineering laboratories have evaluated various plug-in and clamp-on fuel-saving accessories over the years.
The Rigorous Testing Protocol
A standard certified fuel economy test does not rely on a driver looking at an inaccurate dashboard display while driving on public highways. Instead, it utilizes a highly controlled environment:
The test car is secured to a chassis dynamometer inside a climate-controlled room set to a precise temperature and humidity level.
A professional robotic driving system manages the throttle and brakes to perfectly mimic standard driving profiles, such as the EPA’s Federal Test Procedure (FTP-75). This setup ensures every single acceleration curve and braking event is identical across multiple runs.
The exhaust pipe is connected directly to a chemical emissions analyzer. Rather than guessing fuel use based on the car’s fuel gauge, engineers measure the exact volume of carbon compounds in the exhaust gas to calculate fuel consumption down to the milligram.
+-----------------------------------------------------------------+
| Controlled Laboratory Testing Framework |
+-----------------------------------------------------------------+
| |
| +---------------------------------------------------------+ |
| | Climate-Controlled Testing Cell | |
| | | |
| | +-------------------+ +-------------------+ | |
| | | Automated Robotic | ------- | Vehicle Mounted on| | |
| | | Driving System | | Chassis Dyno | | |
| | +-------------------+ +-------------------+ | |
| | | | |
| | v | |
| | +-------------------+ | |
| | | Exhaust Emissions | | |
| | | Collection Pipe | | |
| | +-------------------+ | |
| +-------------------------------------------|-------------+ |
| | |
| v |
| +-------------------+ |
| | Carbon Compound | |
| | Analyzer System | |
| +-------------------+ |
| |
+-----------------------------------------------------------------+
The Unambiguous Baseline Results
When plug-in electronics like the device are evaluated using these precise scientific methods, the results are clear and consistent across the board:
Fuel Consumption: There is absolute zero change in fuel consumption across city, highway, and combined driving cycles. The curves for fuel use with the device active and completely removed overlap perfectly.
Horsepower and Torque: Dyno graphs show no change in power output or throttle response across the entire RPM range.
Emissions Profiles: The levels of hydrocarbons, nitrogen oxides ($\text{NO}_x$), and carbon monoxide ($\text{CO}$) remain entirely unchanged, showing no environmental or combustion benefits.
The laboratory conclusions match the electrical engineering assessments: a tiny passive plug connected to a vehicle’s accessory port cannot alter the mechanical laws governing internal combustion engines.
Genuine and Validated Strategies for True Fuel Efficiency
If small plug-in accessories do not deliver real-world fuel savings, what actionable, scientifically proven methods can drivers use to lower their fuel costs?
True fuel efficiency requires a holistic approach focused on proper vehicle maintenance, physics-informed driving habits, and smart tire management.
+------------------------+
| Authentic Fuel Savings |
+------------------------+
|
+---------------------------+---------------------------+
| | |
v v v
+------------------+ +------------------+ +------------------+
| Mechanical | | Tire & Aero | | Driver Behavior |
| Maintenance | | Optimization | | Adjustments |
+------------------+ +------------------+ +------------------+
| - Clean Filters | | - Target PSI | | - Smooth Throttle|
| - Fresh Plugs | | - Remove Racks | | - Lower Speeds |
| - Correct Oil | | - Low-Rolling Res| | - Clean Cabin |
+------------------+ +------------------+ +------------------+
1. Mechanical Maintenance and Engine Tuning
Replace Clogged Air Filters: Modern engines need a precise ratio of air and fuel to run efficiently. A heavily clogged air filter restricts airflow, forcing the computer to adjust injection patterns. This imbalance can degrade performance and reduce fuel efficiency on older vehicles.
Install Fresh Spark Plugs: Over tens of thousands of miles, spark plug electrodes erode, widening the ignition gap. This wear causes minor engine misfires and incomplete fuel combustion. Installing fresh, factory-specified plugs ensures clean, efficient combustion.
Use the Right Engine Oil Viscosity: Always use the exact motor oil weight recommended in your owner’s manual (such as 0W-20 or 5W-30). Using oil that is too thick increases internal friction within the engine, forcing it to work harder and burn more fuel.
2. Tire Management and Aerodynamic Adjustments
Maintain Correct Inflation Pressures: Under-inflated tires bulge outward, significantly increasing the rolling resistance between the rubber tread and the road surface. Keeping tires inflated to the vehicle manufacturer’s recommended PSI (found on the driver’s door jamb sticker) can improve fuel economy by up to 3%.
Switch to Low-Rolling-Resistance Tires: When it’s time for a new set of tires, look for options engineered with advanced rubber compounds designed to minimize rolling friction. This switch can deliver consistent fuel savings over the lifespan of the tire.
Remove Roof Racks and Unnecessary Weight: Roof boxes, bicycle racks, and cargo carriers create massive aerodynamic drag at highway speeds. Removing them when not in use allows the car to slice through the air cleanly. Additionally, cleaning heavy items out of the trunk reduces the total mass the engine has to accelerate.
3. Modifying Your Habits Behind the Wheel
Practice Smooth, Anticipatory Acceleration: Avoid rapid starts away from stoplights and aggressive braking. Pretend there is an egg balanced under your throttle pedal; press it smoothly and progressively to keep the engine in its most efficient operating zone.
Utilize Engine Coasting Strategies: Keep your eyes down the road to read the flow of traffic. If you see a traffic light turning red in the distance, take your foot off the gas pedal early and coast toward it, rather than maintaining speed and braking hard at the last second.
Proper Use of Cruise Control: Use cruise control when driving on flat, open highways. The automated system can modulate the throttle with micro-adjustments that are far smoother than a human foot, keeping fuel delivery highly consistent.
Conclusion: Making an Informed, Practical Consumer Choice
The Neosocket Fuel Saver represents an appealing idea: the promise that a cheap, simple electronic plug can unlock hidden efficiency and save you money at the gas pump without any effort. However, an analysis of the product’s internal components, electrical physics, and thermodynamic laws reveals that this promise is built on a very basic illusion.
The device contains only a tiny capacitor, a few resistors, and an LED light. This simple circuit board is mathematically and physically incapable of stabilizing a vehicle’s massive electrical network, unburdening the alternator, or altering how fuel burns inside the combustion chambers. Any small improvements reported by everyday drivers are typically the result of the subconscious behavior change that occurs when a driver focuses on saving fuel, combined with changing environmental factors.
When looking to lower commuting costs, avoid shortcut accessories that promise effortless fixes. Instead, focus your time and money on proven, scientifically sound practices: keeping your vehicle properly maintained, ensuring your tires are correctly inflated, and adopting smoother driving habits. These reliable strategies are guaranteed to optimize your car’s performance, lower your emissions, and keep more money in your wallet over the long haul.
